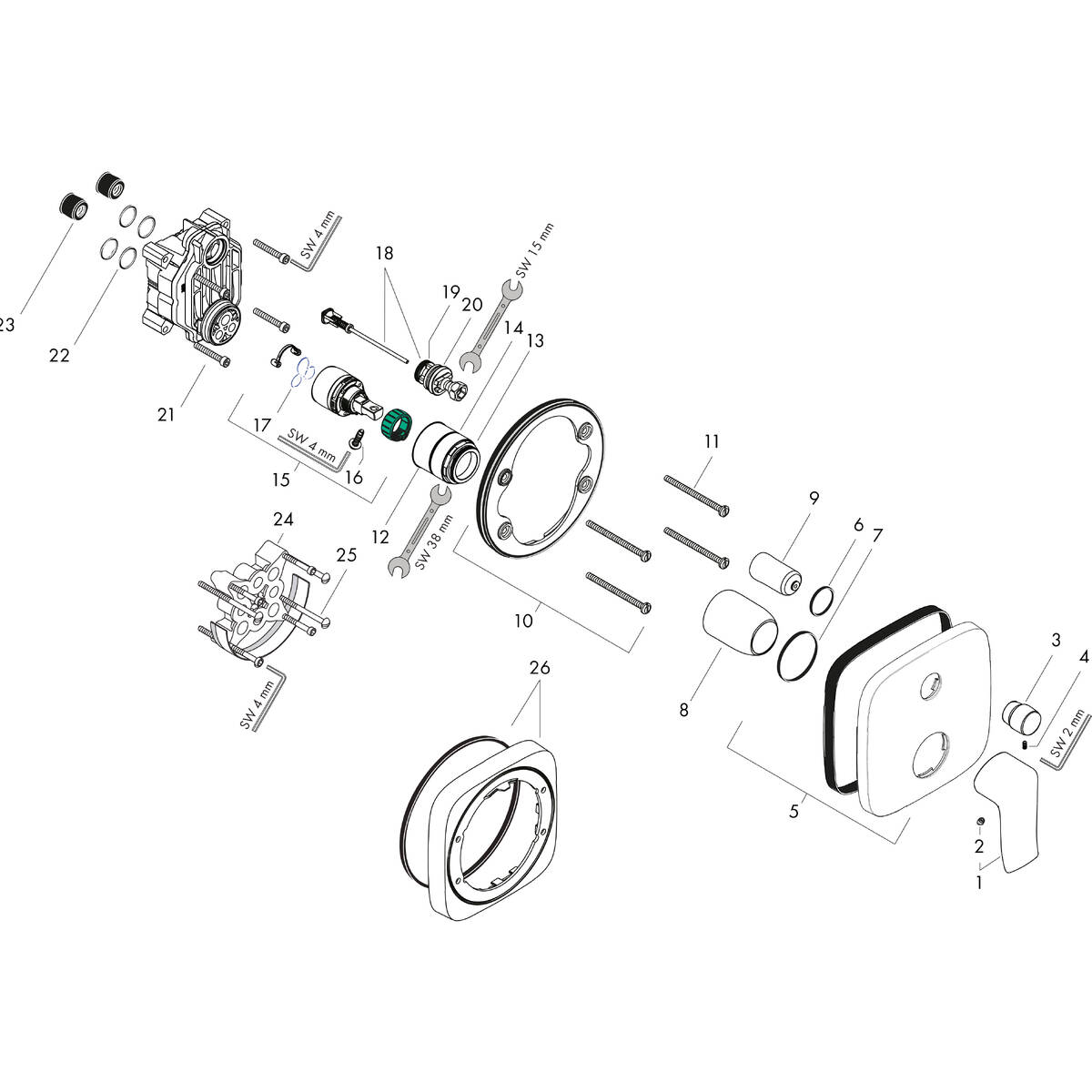

Art. no. 31454003
| Item no. | DescriptionArticle no. |
|---|
| a | concealed item01800180 |
| b | adapter for exchanged connections93181000 |
| 1 | handle95519000 |
| 2 | screw cover96338000 |
| 3 | diverter knob98795000 |
| 4 | hollow set screw M4x1097667000 |
| 5 | escutcheon 155 / 155 mm95275000 |
| 6 | O-ring 23x398142000 |
| 7 | O-ring 43x398418000 |
| 8 | sleeve98790000 |
| 9 | sleeve98794000 |
| 10 | holder for escutcheon98793000 |
| 11 | set of fixing screws96454000 |
| 12 | nut98796000 |
| 13 | O-ring 39x1,598400000 |
| 14 | O-ring 30x1,598433000 |
| 15 | cartridge, assy92730000 |
| 16 | locking screw for handle95140000 |
| 17 | seal95008000 |
| 18 | selector assy95014000 |
| 19 | O-ring 16x2,398207000 |
| 20 | O-ring 20x2,592602000 |
| 21 | set of screws93243000 |
| 22 | O-ring 16x298133000 |
| 23 | noise reduction94073000 |
| 24 | extension 25 mm13595000 |
| 25 | set of fixing screws97747000 |
| 26 | extension 22 mm15597000 |
