Art. no. 72821003
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.Learn more
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more
Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.Learn more
Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more
The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.

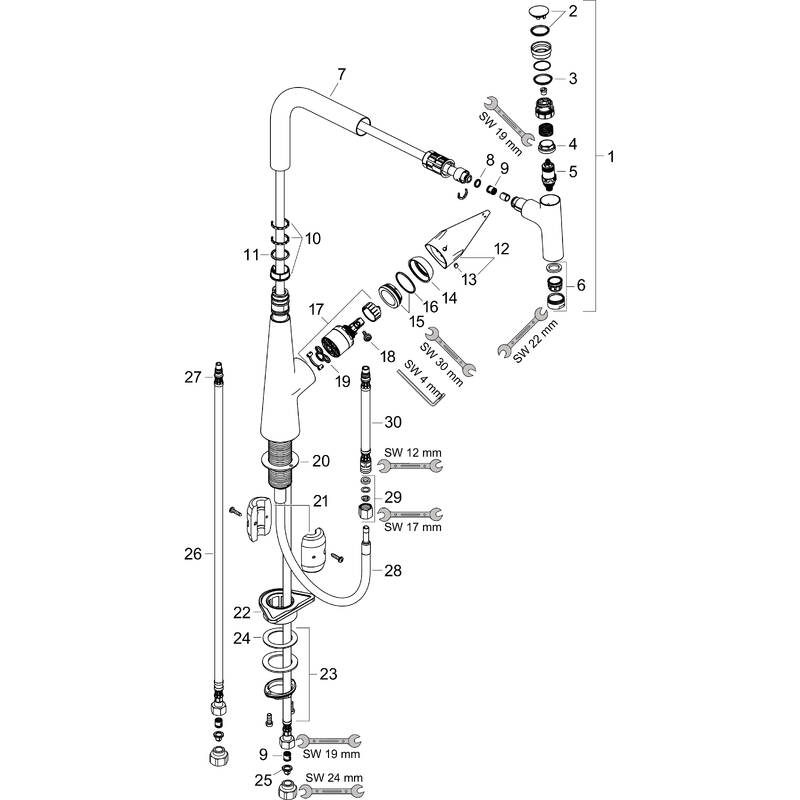

| Item no. | DescriptionArticle no. |
|---|
| 1 | handspray92570003 |
| 2 | cover92566000 |
| 3 | O-Ring 14x1,598201000 |
| 4 | nut92567000 |
| 5 | shut off unit98463000 |
| 6 | aerator M24x192961000 |
| 7 | spout cpl.92583000 |
| 8 | O-ring 8x298112000 |
| 9 | non return valve DW 1096456000 |
| 10 | set of lever collars98365000 |
| 11 | O-ring 21x2,598211000 |
| 12 | handle92581000 |
| 13 | screw cover96338000 |
| 14 | flange95498000 |
| 15 | nut97209000 |
| 16 | O-Ring 32x298193000 |
| 17 | cartridge, assy92730000 |
| 18 | locking screw for handle95140000 |
| 19 | seal95008000 |
| 20 | seal92582000 |
| 21 | weight92500000 |
| 22 | support97523000 |
| 23 | fixing set (Ø 34)95049000 |
| 24 | lever collar97548000 |
| 25 | filter packing95291000 |
| 26 | connection hose 900 mm M8x0,75 G3/895372000 |
| 27 | O-ring 7x1,598422000 |
| 28 | hose 1,50 m92569000 |
| 29 | squeezing connection96099000 |
| 30 | connection hose 600 mm M10x192568000 |
